Description

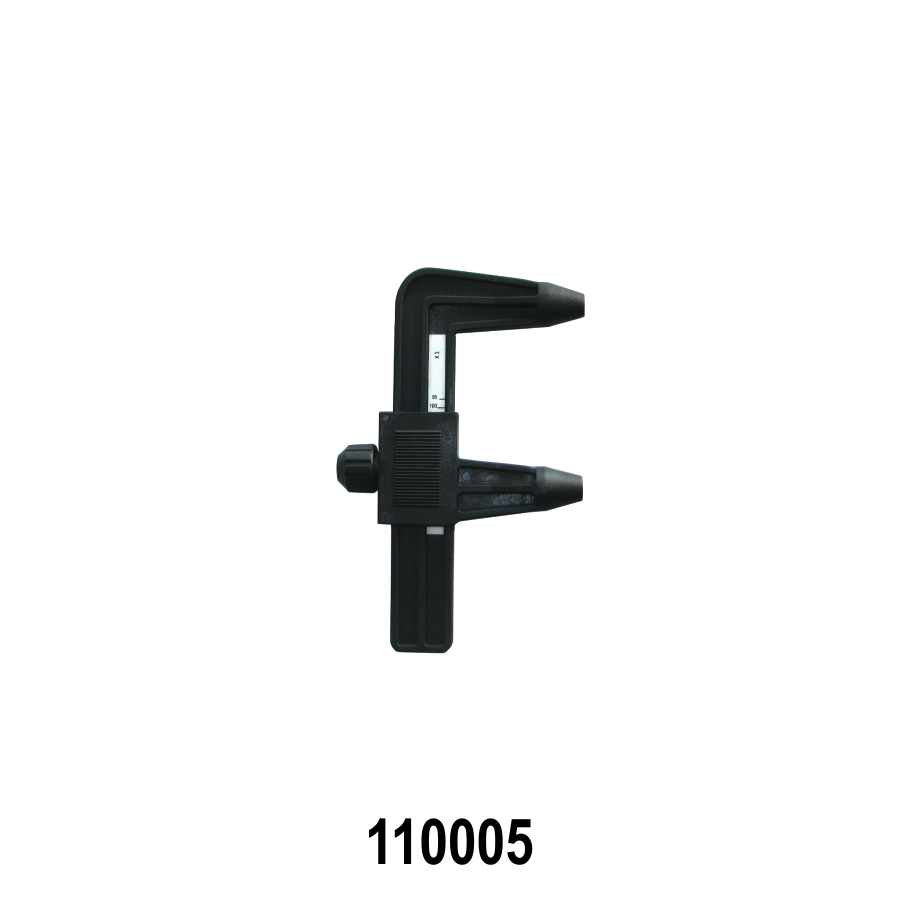

- The Sarv PCD Measuring Tool (Code: 110005) is a professional pitch circle diameter gauge designed to accurately measure wheel bolt patterns on rims with 3, 4, or 5 lug holes. In any tire shop, wheel balancing station, or alignment workshop, confirming the correct bolt pattern is a critical step before mounting wheels, selecting wheel adapters, or verifying rim compatibility.
- This PCD Measuring Tool is engineered for fast and reliable measurements. The tool is extremely easy to use: the technician inserts the measuring legs into adjacent lug holes and reads the bolt pattern directly from the scale. This eliminates guesswork and reduces time spent using manual methods or trial fitting.
- The tool covers a measuring range of 95 mm to 160 mm, making it suitable for a broad range of wheel sizes and vehicle applications. It can be used on both steel and alloy rims, which makes it a practical choice for workshops servicing multiple vehicle types.
- To improve stability during use, Sarv includes a nut locking feature on the tool. This locking function helps maintain consistent positioning while reading the scale, which is especially helpful when measuring wheels with deep lug holes or irregular rim designs.
- Constructed from PA6 glass-filled material, this gauge offers excellent durability for workshop environments. The material provides good strength, wear resistance, and long-term reliability, making it suitable for frequent daily handling.
- The Sarv PCD Measuring Tool is an essential fitment and wheel service accessory for professionals who require consistent accuracy and efficient workflow.
Technical Specifications
Material: PA6 Glass Filled
Measurement Display: Inch + Metric
Weight: 110 g
Packing Details
Box Size: 46 × 33 × 27 cm
Quantity per Box: 100 pcs
Gross Weight: 12.500 kg
Export Markets
Sarv supplies automotive tools and accessories to global markets including USA, UK, Europe, Middle East, Asia, Africa, Japan, South America, and other international regions.
Shipping & Logistics
Export-ready packing suitable for sea and air freight
Clearly labeled cartons for easy handling and inventory control
Bulk shipment options available for distributors and fleet buyers
Global exports to 70+ countries
Custom packing and private labeling available on request
Frequently Asked Questions (FAQ)
What is a PCD Measuring Tool used for?
A PCD Measuring Tool is used to measure the pitch circle diameter (bolt pattern) of wheel rims, helping ensure the correct wheel fitment.
Which bolt patterns does this tool measure?
This tool measures 3-lug, 4-lug, and 5-lug bolt patterns.
What is the measurement range of this PCD Measuring Tool?
It measures bolt patterns from 95 mm to 160 mm.
Can it be used on both steel and alloy wheels?
Yes. The tool is suitable for both steel rims and alloy rims.
Does this tool show inch measurements as well as metric?
Yes. It displays both inch and metric readings for convenience.
How do you use the PCD Measuring Tool?
Insert the gauge legs into adjacent lug holes and read the measurement directly from the scale.
What is the nut locking feature used for?
The nut locking feature helps stabilize the tool during measurement, improving accuracy and ease of reading.
What material is the tool made from?
It is made from PA6 glass-filled material, which is strong and suitable for workshop use.
