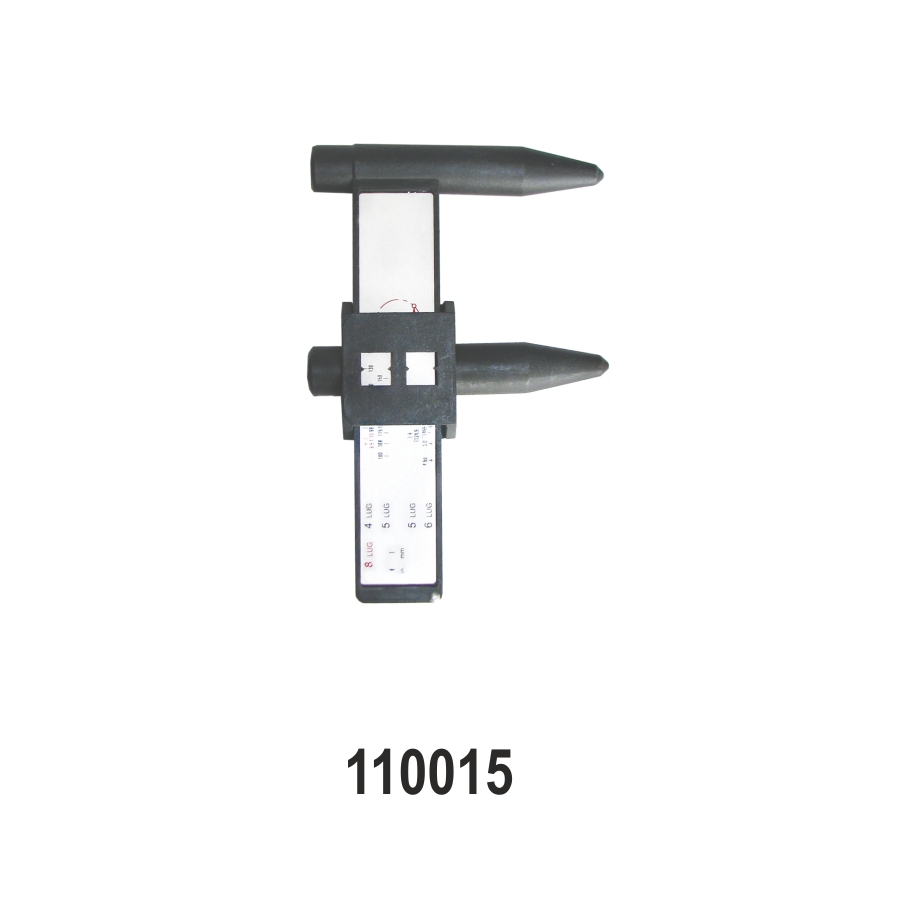

PCD Measuring Tool for 4,5,6, 8 Lugs(98 -210mm)

Code: 110015
  • SARV’s premium quality Pitch Circle Diameter gauge / Rim Bolt Ruler circle pattern guage effectively measures 4, 5, 6, 8 lug bolt patterns on the wheel rims.
  • Extremely easy to use – Insert the gauge legs in the adjacent lug hole and record the readings on the scale.
  • Is mAde from high quality ABS plastic and displays Inch and Metric dimension readings.
  • Can be used both on steel and alloy wheels. The scale readings are :
  • 4-Lug ( 4.5″” & 100mm to 140mm)
  • 5-Lug (4.25″” to 6.5″” & 100mm to 150mm)
  • 6-Lug (4.5″” to 5.5″” & 135mm)
  • 8-Lug (6.5″” & 170mm to 210mm)
  • There is no Nut Locking feature on this Tool
In Stock
Compare Product


Material: PA6 glass filled
Weight: 105gms


Packing Details

Box Size 46x33x27cm
No. of Pcs/Box 50 Pcs
Gross Weight 7.500kg
