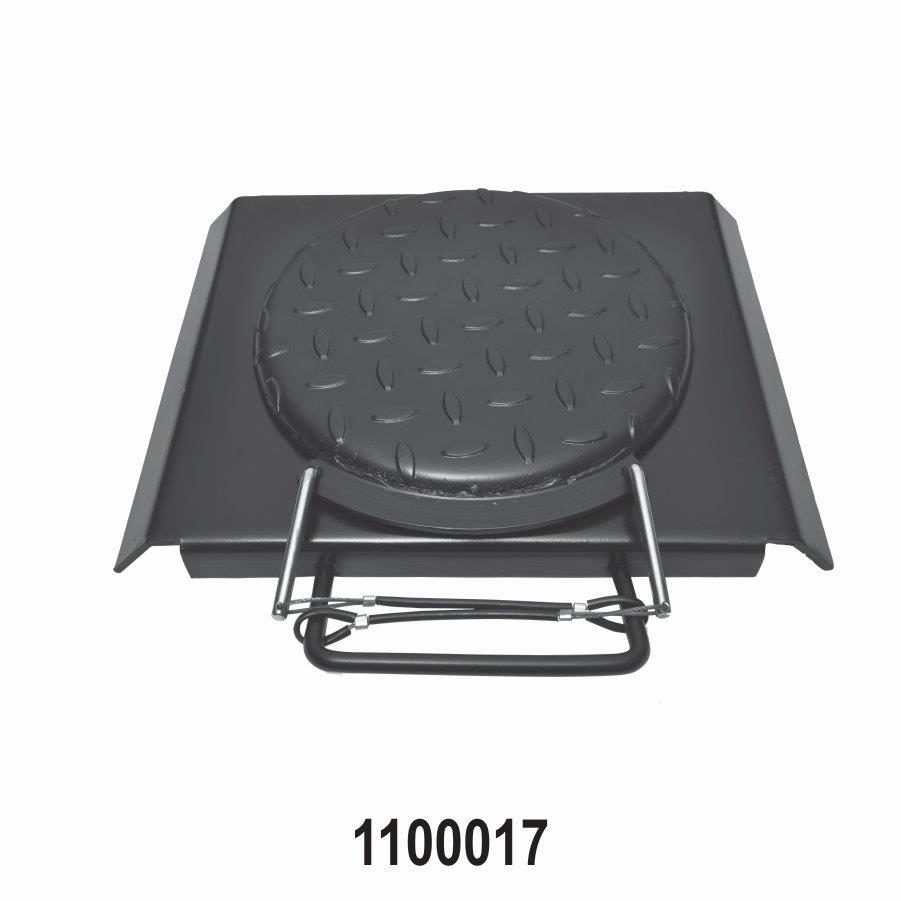

Wheel Alignment Turn Plate for Passenger Car
Wheel Alignment Turn Plate for Passenger Car

Wheel Alignment Turn Plate for Passenger Car

Code: 1100017
  • Sarv manufacturers a range of high precision Wheel Alignment Turn plates for high accuracy in Wheel Alignment Measurements.
  • Turn plates are free floating with 360 degree movement in all directions , due to steel balls underneath in plastic cage which provide a low friction movement , and aid measure a variety of Alignment angles with accuracy.
  • All Sarv Turn plates are robust with industrial grade designs and perfect for long term use.
    Comes with dual pin locking system to provide stability of slip plate for keeping the plates zeroed and in position while the vehicle drives up on them or even while turn plates are not in use.
  • These are equipped with built in handle for easy carriage and auto centering design
  • This particular alignment Turntable is made from heavy duty steel , and black powder coated for anti rust finish and extended life span.
  • Slip Plate Diameter 275mm, 10″”
  • 24 Steel Balls Used in plastic cage with Dia : 15mm
  • Capacity : 1000Kgs or 1 Ton each
  • Used for passenger car wheel alignment.
In Stock
Compare Product
Wheel Alignment Turn PLates
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Submit Your Inquiry

    Exporting Globally to many countries in North America , South America, Europe , Africa , Australia , Asia since 1987




    Description

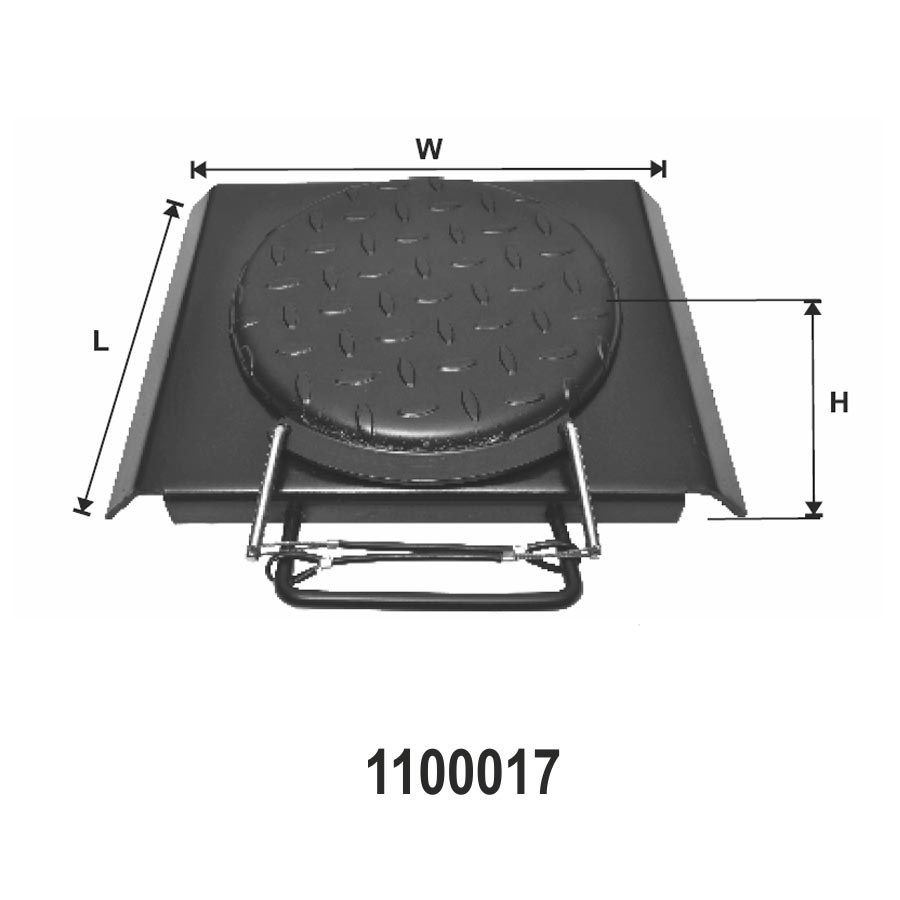

    Size: L-320mm, W- 400mm, H-50mm
    Capacity: 1000kg
    Dia: Top Plate – 275mm
    Weight: 9.250 kg
    Material: Made from heavy duty steel sheet. Black Powder Coated to prevent rusting. 24 Steel balls(Dia 15mm) used in plastic cage.

    Packing Details

    Box Size 43x41x12cm
    No. of Pcs/Box 2 Pcs
    Gross Weight 20.000kg





    Related products

    • Steering Wheel Holder Stand Tool Wheel Alignment Passenger car
      • Steering Wheel Holder Stand Tool Wheel Alignment Passenger car
      • Steering Wheel Holder Stand Tool Wheel Alignment Passenger car
      Quick View
      Steering Wheel Holders

      Steering Wheel Holder Stand Tool Wheel Alignment Passenger car
      • Sarv’s Range of Wheel Alignment Machine accessories include steering wheel holders.
      • Sarv’s steering wheel holders hold the steering wheel securely in one position to carry the 3D /CCD wheel alignment for adjusting toe-in , toe-out and in centering the steering wheel.
      • Made from high quality Iron. Smooth hooks and base ensure a secure fit that won’t damage the steering wheel and seat covers.
      • Pressing quick locking switch can adjust the height with a loaded spring to fit a wide variety of cars.
      • Extends up to 14-1/2 inches.
      • Base diameter 4-1/2 inches.
      (0 reviews)
      Read more
      Quick ViewCompare Product
    • 5 Pin Wheel Alignment Clamp with Grab arms
      • 5 Pin Wheel Alignment Clamp with Grab arms
      • 5 Pin Wheel Alignment Clamp with Grab arms
      Quick View
      Wheel Alignment Machine Accessories

      5 Pin Wheel Alignment Clamp with Grab arms
      • Sarv’s premium Wheel Alignment Clamp with 5 pin holds the wheels from its side walls rather than traditional wheel rims. This provides a better grip to the clamp and also prevents the damage caused to the rims if any with the insertion of the wheel clamp adaptors in traditional method.
      • Made from high quality steel to provide firm group while holding the tire side wall.
      • Comes with a spring loaded locking mechanism to ensure clamp sits well on the tyre and at the desired position.
      • The 5 legs of the wheel clamp are inserted on the wheel holes for support.
      • The tyre is grabbed by 2 grab arms from the tread area on the sides and securely fits on the rim. The screw knob in the centre is rotated to adjust the degree of firmness of the grab arms to the tyre.
      • Can easily fir on the tyres with rims size from 12”-24””
      (0 reviews)
      Read more
      Quick ViewCompare Product
    • Wheel Alignment Turn Plate for 3D Wheel Alignment Machines (with rubbber stopper
      • Wheel Alignment Turn Plate for 3D Wheel Alignment Machines (with rubbber stopper
      • Wheel Alignment Turn Plate for 3D Wheel Alignment Machines (with rubbber stopper
      Quick View
      Mechanical Turn Table

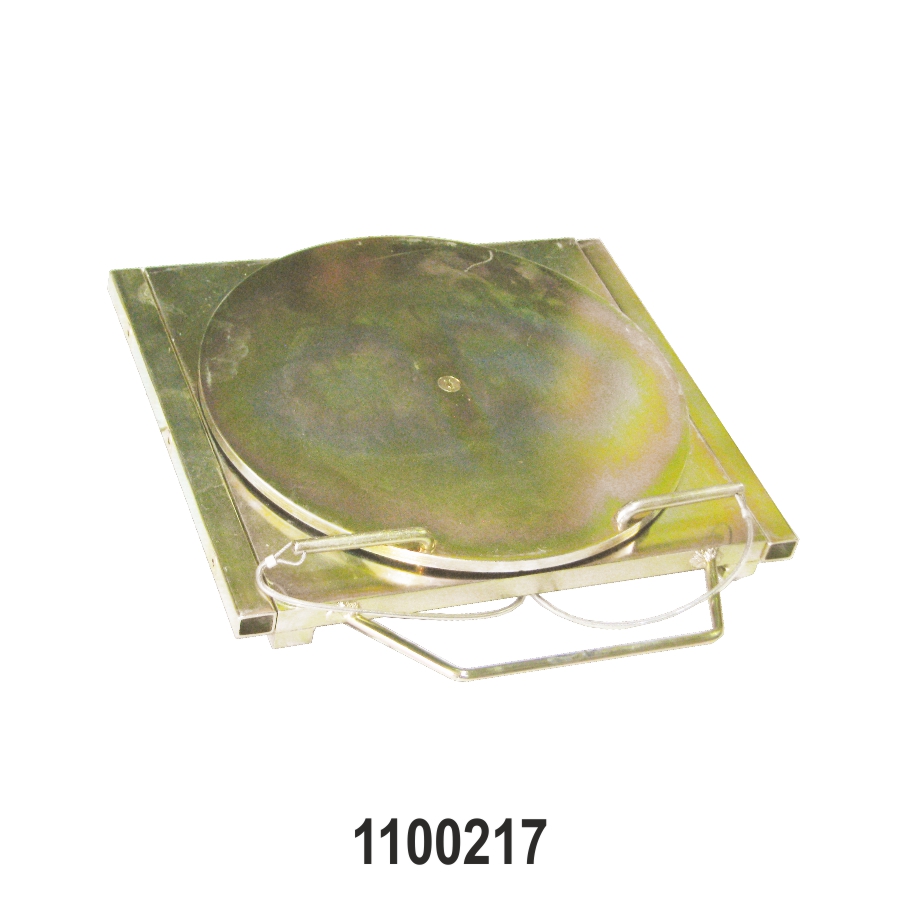

      Wheel Alignment Turn Plate for 3D Wheel Alignment Machines (with rubbber stopper)
