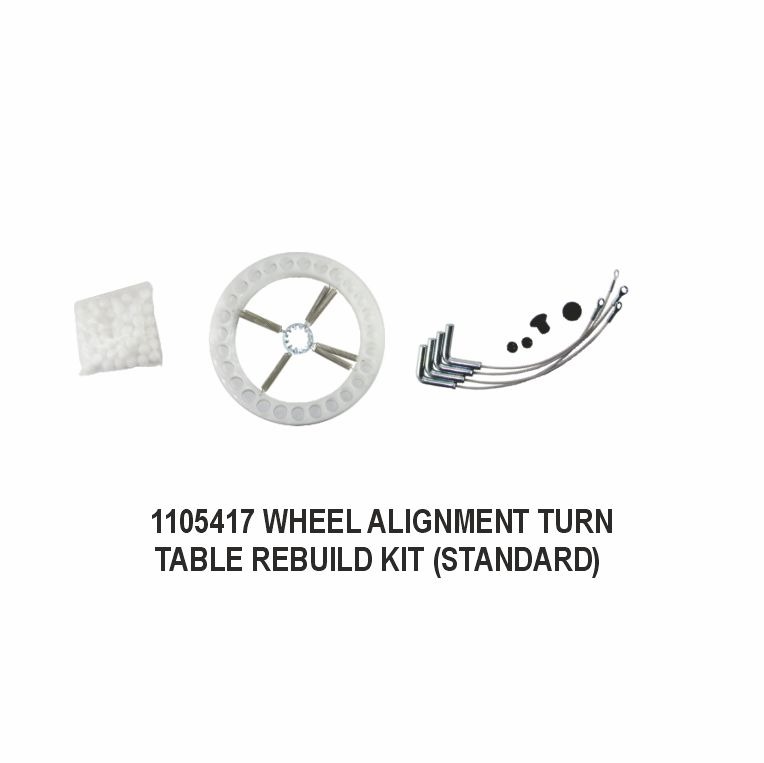

Professional Wheel Alignment Turn Plate Rebuild Kit

Wheel Alignment Turn Plate/Table Rebuild Kit

Code: 1105417
  • Complete rebuild kit is a product designed for automotive workshops, garages, and service centres, engineered to repair and restore worn alignment turn plates back to full working condition.
  • Suitable for rebuilding 2 nos. 14” alignment turn plates, making old turn plates usable again.
  • Includes durable steel replacement parts and precision components for smooth turn plate movement.
  • Supplied with Delrin balls, retainers, washers, springs, bolts, set screws, and lock pins.
  • Ideal for wheel alignment workshops, service centers, and alignment equipment distributors.
  • Helps reduce replacement cost by rebuilding existing turn plates instead of buying new units.

Why Sarv Is the Preferred Choice Across Global Markets?

🏆 Meets Export Quality Standards for US, UK, EU & Global Markets
🏭 Exclusive in-house manufacturing with strict quality control standards
🌍 Global export presence in 70+ countries
🔧 Decades of expertise in wheel alignment and garage equipment
📐 Proven reliability in professional and heavy-duty workshops
🛠️ OEM support and custom manufacturing capability
🤝 Long-term partnerships with global distributors and fleet service networks

Looking for specifications? Click here for Custom Manufacturing
Submit Enquiry
In Stock

Description

  • Sarv’s range of wheel alignment machine accessories includes a professional Wheel Alignment Turn Plate Rebuild Kit designed to repair worn turn plates and restore them to smooth working condition. Over time, alignment turn plates can develop stiffness, uneven movement, or wear due to continuous load cycles and repeated workshop usage. This rebuild kit allows workshops to repair old units efficiently and bring them back into service without replacing the complete turn plate assembly.
  • This kit is a complete repair solution for 2 nos. 14” alignment turn plates. It includes all essential replacement components such as Delrin balls, ring ball retainers, washers, springs, bolts, set screws, and lock pins. These parts help restore smooth movement, stable positioning, and proper turn plate functionality required for accurate wheel alignment measurements.
  • The kit includes sturdy and robust steel replacement parts, making it suitable for professional workshop environments where durability and long service life are required. It is an ideal solution for alignment service centers, tire shops, equipment maintenance teams, and distributors supplying replacement parts for alignment systems.

Kit Contents (Complete Set for 2 Plates)

54 Nos. 14.28mm Derlin Balls

4 Nos. Stainless Steel Lock Pins

2 No. Retainer Rings with Spring assemblies

2 No. Steel Set Screws

2 No. Steel Top Screws

Technical Specifications

Weight: 460 gms
Material : The Retainer Rings are made from Nylon Plastic.
Note : Retainer Ring Inner Dia : 5 7/8″, Outer Dia : 7 3/4″.

Packaging Details

Packing: Packed in pair in thermocol box
Box Size: 60 × 28 × 32 cm
Number of Pieces per Box: 2 pcs
Gross Weight: Approx. 12.000 kg
Packing Type: Individual protective packing with outer export cartons

Export Markets

Sarv supplies automotive tools and accessories to global markets including USA, UK, Europe, Middle East, Asia, Africa, Japan, South America, and other international regions.

Shipping & Logistics

Export-ready packing suitable for sea and air freight
Clearly labeled cartons for easy handling and inventory control
Bulk shipment options available for distributors and fleet buyers
Global exports to 70+ countries
Custom packing and private labeling available on request

Frequently Asked Questions (FAQ)

What is this rebuild kit used for?
This kit is used to repair and restore worn alignment turn plates, improving smooth rotation and turn plate performance.
How many turn plates can be rebuilt with this kit?
This rebuild kit is designed for 2 nos. 14” alignment turn plates.
What size turn plates is this kit compatible with?
It is designed specifically for 14-inch alignment turn plates.
What type of balls are included in the kit?
14.28mm Derlin Balls
Are the washers and springs made from stainless steel?
Yes. The kit includes stainless steel internal washers and stainless steel springs for durability and corrosion resistance.
Does the kit include ball retainers?
Yes. It includes 2 ring ball retainers.
Is this rebuild kit suitable for professional workshops?
Yes. It is designed for continuous workshop use and includes sturdy replacement components.
Does using a rebuild kit improve alignment accuracy?
Yes. Smooth and stable turn plate movement supports accurate caster and steering angle measurements during wheel alignment.

Submit Your Inquiry

    Exporting Globally to many countries in North America , South America, Europe , Africa , Australia , Asia since 1987






    Related products

    • Brake Pedal Depressor for Passenger Cars – Precision Wheel Alignment Tool by Sarv India
      • Brake Pedal Depressor for Passenger Cars – Precision Wheel Alignment Tool by Sarv India
      Brake Pedal Depressors

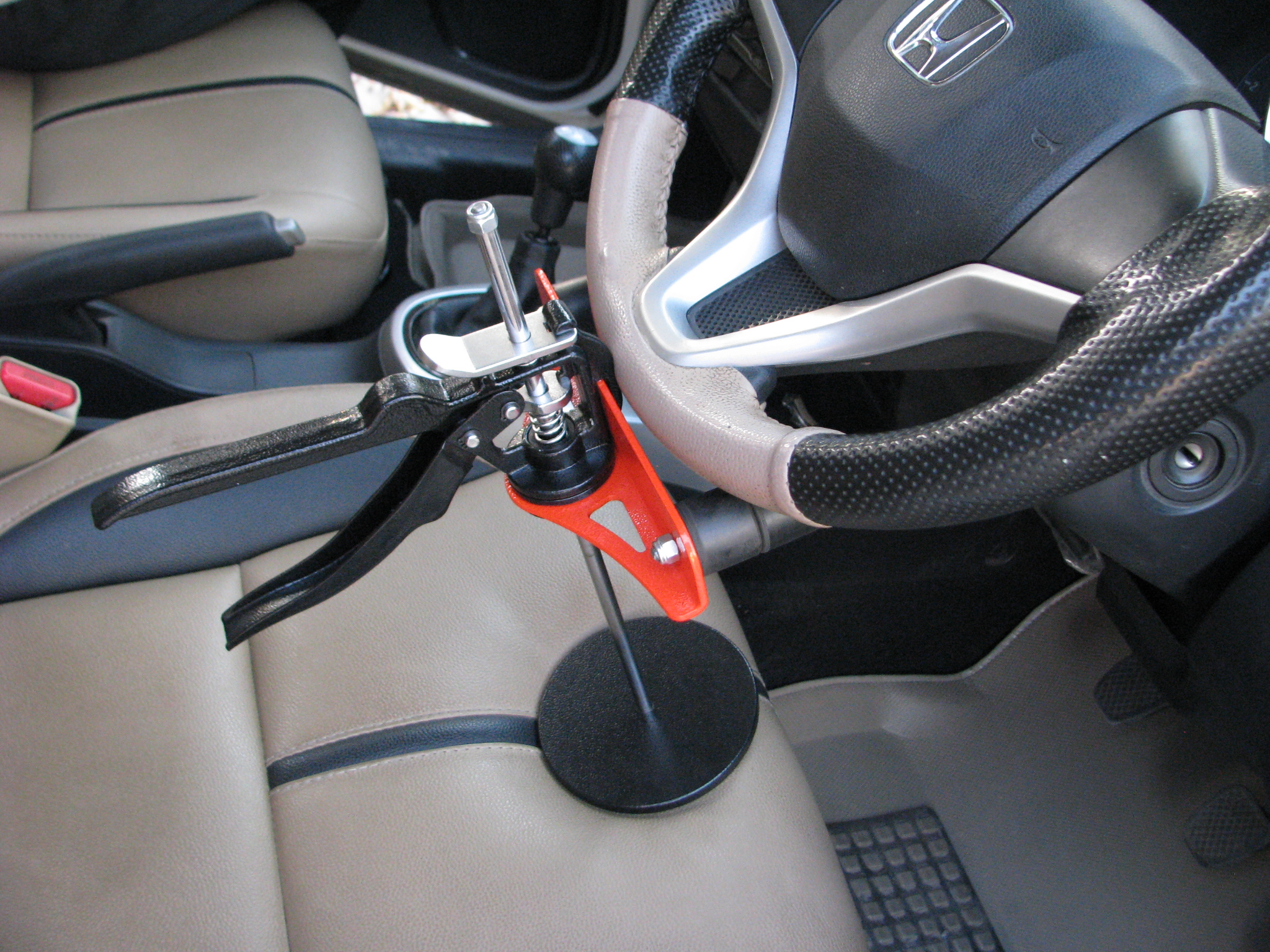

      Brake Pedal Depressor Wheel Alignment Passenger Car
