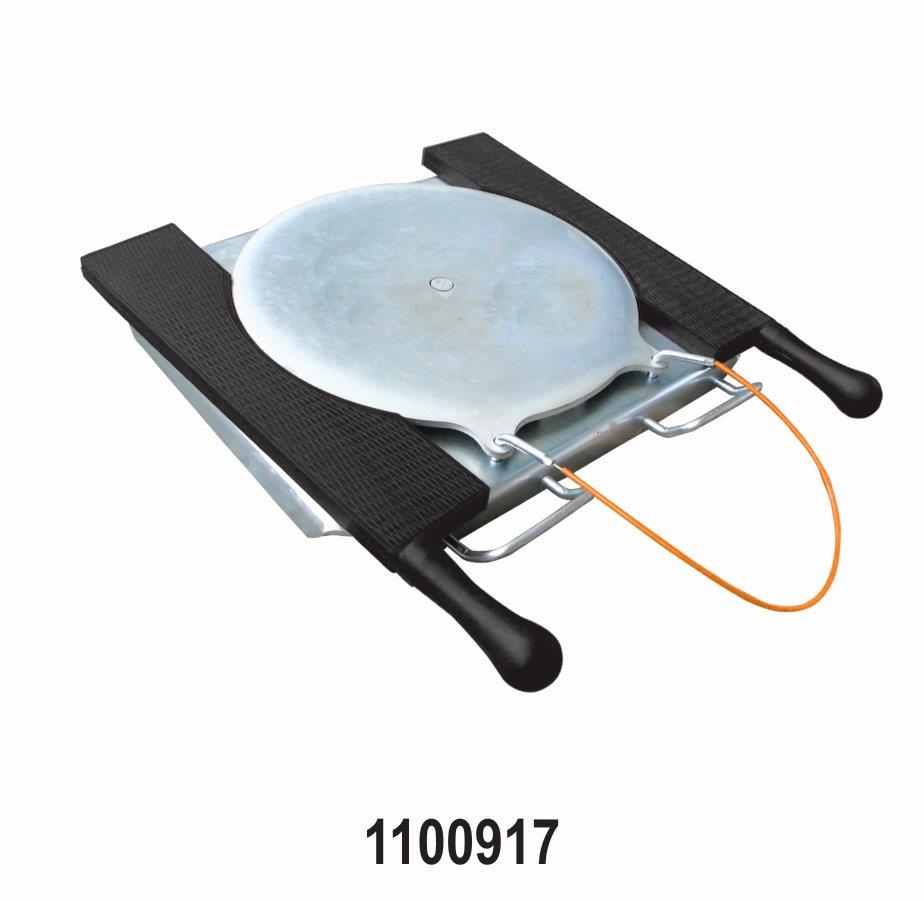

Wheel Alignment Turn Plate for 3D Wheel Alignment Machines (with rubbber stopper)

Code: 1100917
  •  Sarv manufacturers a range of high precision Wheel Alignment Turn plates for high accuracy in Wheel Alignment Measurements.
  • Turn plates are free floating with 360 degree movement in all directions , due to Steel balls underneath in a plastic cage which provide a low friction movement , and aid measure a variety of Alignment angles with accuracy.
  •  All Sarv Turn plates are robust with industrial grade designs and perfect for long term use.
  •  This Particular Turn plate is used specially 3D wheel alignment machines and comes with rubber stopper.
  •  Carries load capacity of 1.5 tons each and as zinc plated.
  • 48 Steel balls of dia 12mm are used in plastic cage.
In Stock
Compare Product
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Submit Your Inquiry

    Exporting Globally to many countries in North America , South America, Europe , Africa , Australia , Asia since 1987






    Description

    Size: L-400mm, W-470mm, H-50mm
    Capacity: 1500kg each
    Dia: Top Plate – 360mm
    Weight: 15.180kg
    Material: Special Steel. Zinc Plating 48 Steel balls(Dia 12mm) used in plastic cage.

    Packing Details

    Box Size 54x46x21cm
    No. of Pcs/Box 2 Pcs
    Gross Weight 38.350kg
