Wheel Alignment Turn Table for Truck / Buses with Scale Size : L-480 mm , W-480mm, H-74 mm , Dia : 480 mm , Weight : 45 kgs
Wheel Alignment Turn Table for Truck / Buses with Scale Size : L-480 mm , W-480mm, H-74 mm , Dia : 480 mm , Weight : 45 kgs

Wheel Alignment Turn Table for Truck / Buses with Scale Size : L-480 mm , W-480mm, H-74 mm , Dia : 480 mm , Weight : 45 kgs

Code: 1100317
  • Sarv manufacturers a range of high precision Wheel Alignment Turn plates for high accuracy in Wheel Alignment Measurements.
  • Turn plates are free floating with 360 degree movement in all directions , due to derlin balls underneath in a plastic cage which provide a low friction movement , and aid measure a variety of Alignment angles with accuracy.
  • All Sarv Turn plates are robust with industrial grade designs and perfect for long term use.
  • Comes with dual pin locking system to provide stability of slip plate for keeping the plates zeroed and in position while the vehicle drives up on them or even while turn plates are not in use
  • These are equipped with built in handle for easy carriage and auto centering design
  • This particular alignment Turntable is made from heavy duty steel , and light blue powder coated for anti rust finish and extended life span.
  • Comes with a easy to read scale (0-60 Degrees left and right) which aids in easy reading of caster, camber and steering alignment.
  • Slip Plate Diameter 350mm, 14″ .
  • 120 Derlin Balls Used with Dia : 12mm.
  • Capacity : 1500Kgs or 1.5 Ton each.
  • Used for Truck Buss wheel alignment.
In Stock
Compare Product
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Submit Your Inquiry

    Exporting Globally to many countries in North America , South America, Europe , Africa , Australia , Asia since 1987




    Description

    Size: L-480mm, W-480mm, H-74mm
    Capacity: 7000kg each having scale of ± 0° – 60°
    Dia: Top Plate – 480mm
    Weight: 45.000kg
    Material: Made from cold roll (CRC) steel sheet. 120 Plastic balls. (Ø18mm) used in plastic cage.

    Packing Details

    Box Size 70x51x17cm
    No. of Pcs/Box 1 Pcs
    Gross Weight 46.200kg



    Related products

    • Wheel Alignment Turn Plate for Passenger Car
      • Wheel Alignment Turn Plate for Passenger Car
      • Wheel Alignment Turn Plate for Passenger Car
      Quick View
      Wheel Alignment Machine Accessories

      Wheel Alignment Turn Plate for Passenger Car
      • Sarv manufacturers a range of high precision Wheel Alignment Turn plates for high accuracy in Wheel Alignment Measurements.
      • Turn plates are free floating with 360 degree movement in all directions , due to steel balls underneath in plastic cage which provide a low friction movement , and aid measure a variety of Alignment angles with accuracy.
      • All Sarv Turn plates are robust with industrial grade designs and perfect for long term use.
        Comes with dual pin locking system to provide stability of slip plate for keeping the plates zeroed and in position while the vehicle drives up on them or even while turn plates are not in use.
      • These are equipped with built in handle for easy carriage and auto centering design
      • This particular alignment Turntable is made from heavy duty steel , and black powder coated for anti rust finish and extended life span.
      • Slip Plate Diameter 275mm, 10″”
      • 24 Steel Balls Used in plastic cage with Dia : 15mm
      • Capacity : 1000Kgs or 1 Ton each
      • Used for passenger car wheel alignment.
      (0 reviews)
      Read more
      Quick ViewCompare Product
      Quick View
      Wheel Alignment Machine Accessories

      Self Centering 4 point Wheel Alignment Clamp for Passenger Car 12″-25″ (Push type Claws)
      • Sarv’s Range Of Wheel Alignment Accessories include range of high quality Wheel Alignment Clamps for wheels that require run out compensation.
      • Our sturdy Wheel Clamps can strongly hold both Sensor arms or Targets for CCD Wheel Alignment and 3D Wheel Alignment Machines.
      • Centre Hole comes in 15mm, 16mm and 20mm diameter.
      • The clamps can fit rim sizes from 12-25″” and adjustable rods made of high quality steel.
      • Uses Durable High quality jaw/claws- replaceable with Sarv part number 550127 & 550227
      (0 reviews)
      Read more
      Quick ViewCompare Product
    • Wheel Alignment Clamp Adaptor Finger Tool
      Quick View
      Wheel Alignment Machine Accessories

      Wheel Alignment Clamp Adaptor Finger Tool
      • Sarv Manufactures a range of Wheel Alignment adaptors or Finger tools for Wheel Alignment Clamps. These aid in installation of the wheel clamp on the wheels.
      • Every clamp uses 4 pcs of these tools.
      • Manufactured from high quality steel and durable , sturdy enough to securely keep the clamps installed on the wheel without any damage or slippage.
      • Use on your preferred wheel clamp or SARV Wheel Clamp Part no. 551024, 550184, 550244
      (0 reviews)
      Read more
      Quick ViewCompare Product
      Quick View
      Wheel Alignment Machine Accessories

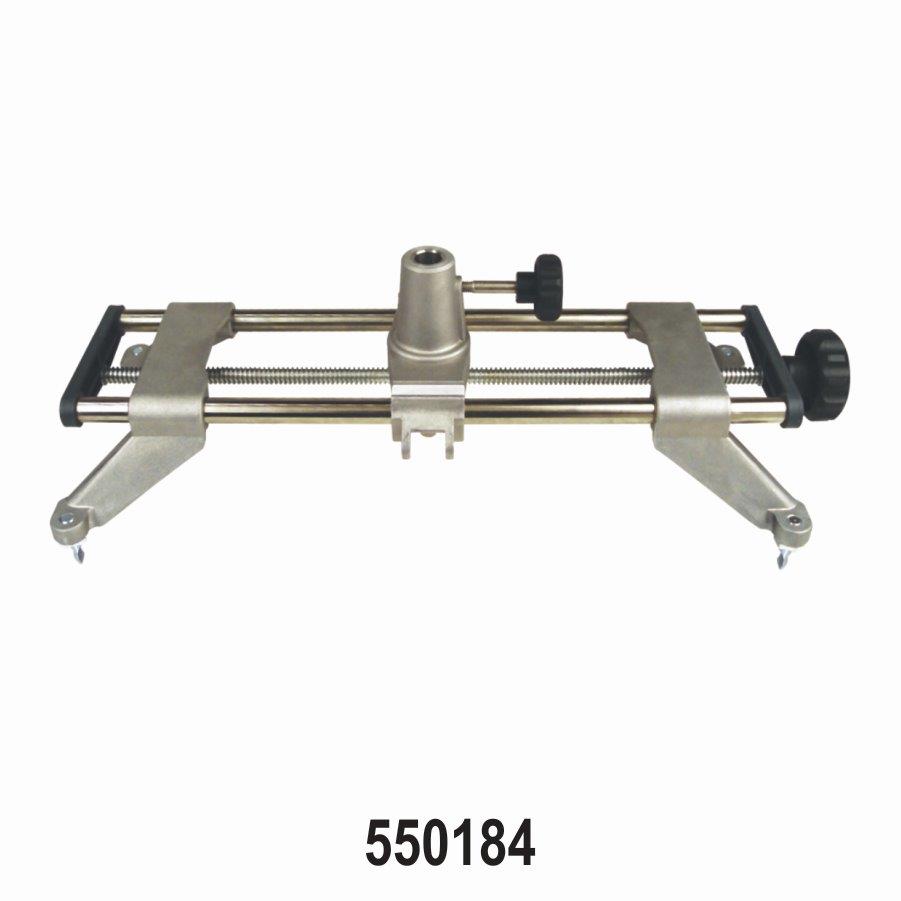

      Self Centering 4 point Wheel Alignment Clamp for Passenger Car 12″-25″
